Details Technical Specifications

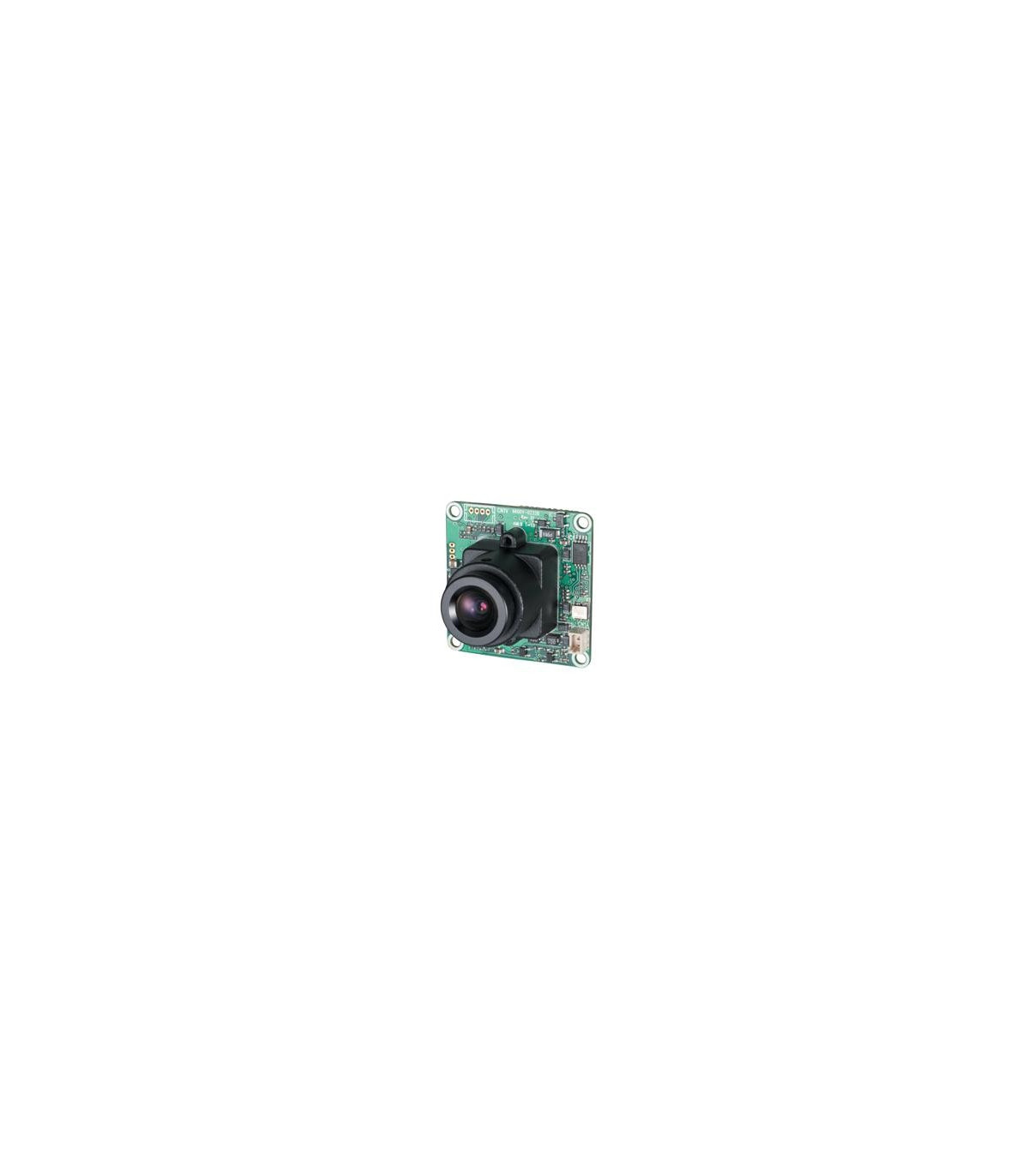

Model ACE-M390C
Signal System NTSC PAL
Scanning System 2:1 Interlace
Image Sensor 1/3’’ Sony Super HAD CCD II
Effective Pixels No. 768(H)x494(V) 752(H)x582(V)
Horizontal Resolution 550 TV Lines
White Balance Automatic (2,100 ° K ~ 8,000 ° K)
S/N Ratio More than 48dB (AGC Off)
Lens Mount Board, Pin hole, Varifocal
Sync. System Internal
Min. Illumination 0.1 ~ 0.3 Lux@ F2.0
Electronic Shutter 1/60~1/100,000sec 1/50~1/100,000sec
Supplied Voltage DC12V±10%
Dimensions 32(W)x32(H) mm

Similar Models
Model Specifications Resolution Dimensions Power
ACE-S350C 1/3"Sony CCD + SS-11R 380 TVL 32 mm x 32 mm DC12V
ACE-S390C 1/3"Sony CCD + SS-11R 380 TVL 38 mm x 38 mm DC12V
ACE-S226C 1/3"Sony CCD + SS-11R 380 TVL 22 mm x 26 mm DC5V
ACE-M385C 1/3"Sony CCD II + HQ1 550 TVL 38 mm x 38 mm DC12V
ACE-M395C 1/3"Sony CCD II + NEXT + OSD 550 TVL 32 mm x 32 mm DC12V
ACE-WDR380 1/3"Sony Double Scan CCD + SS-3 550 TVL 38 mm x 38 mm DC12V
ACE-UC300 1/4"Sony Progressive CCD + USB 1.0 VGA 35 mm x 35 mm USB
